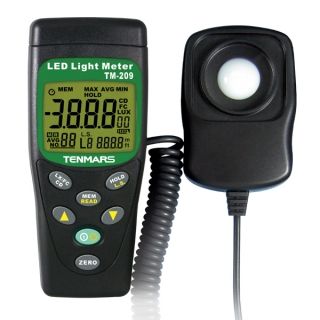

TM-209 LUX/FC LED Light Meter
Model No.: : TM-209 Product Description • According to JISC 1609 : 1993 and CNS 5119 general A class specifications • Spectral response close to CIE Luminous spectral efficiency • Measuring intensities of illumination in Lux or Foot-candle • Sensor : Silicon photo diode and filter • Cosine angular corrected • Data hold • 99 manual records
Listing Details
Application
Checking LED Light Intensity
Specification
|
Light Source Selecting |
Tungsten/Daylight, Fluorescent, 0~9 select rating |
|
Measuring range |
40, 400, 4,000, 40,000, 400,000 Lux, 40, 400, 4,000, 40,000, Foot-candle |
|
Accuracy
|
+/-3% (Calibrated to standard incandescent lamp 2856º K) and corrected LED day while-light spectrum. +/-6% (other visible light source) |
|
Meter size (LxWxH) |
130x55x38mm |
|
Sensor size (LxWxH) |
80x55x25mm |
|
Weight (including battery) |
250g |
