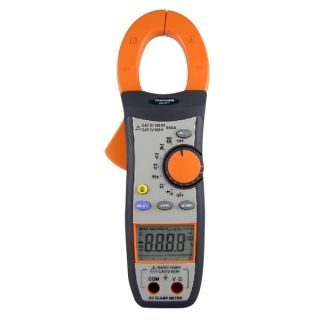

TM-2011 AC Clamp Meter
Model No.: : TM-2011
Product Description
CAT IV 600V, CAT III 1000V
3-3/4 digit LCD backlit display and bargraph, with maximum reading of 4000.
AC voltage range: 0 to 750V.
AC current range: 0 to 660A.
DC voltage range: 0 to 1000V.
Resistance measurement to 4000 ohms.
Data Hold, Peak Hold, Min/Max, Autoranging.
Test Ranges: ACV, ACA, Resistance, Frequency, Diode, Continuity.
Work light.
Low battery indication.
Product Description
CAT IV 600V, CAT III 1000V
3-3/4 digit LCD backlit display and bargraph, with maximum reading of 4000.
AC voltage range: 0 to 750V.
AC current range: 0 to 660A.
DC voltage range: 0 to 1000V.
Resistance measurement to 4000 ohms.
Data Hold, Peak Hold, Min/Max, Autoranging.
Test Ranges: ACV, ACA, Resistance, Frequency, Diode, Continuity.
Work light.
Low battery indication.
Listing Details
Specification
Maximum Current
660 Amps
Display
4000 counts
Max. Conductor Size
40mm
AC Current
0.1A to 660A
AC Voltage
0.1V to 750V
DC Voltage
0.1V to 1000V
Resistance
1Ω to 4000Ω,
Continuity Buzzer
Yes
Diode
Test voltage
Frequency
1Hz to 400KHz
Analog Bargraph
Yes
Backlit Display
Yes
Work Light
Yes
Autoranging
Yes
Auto Power Off
Yes
Peak Hold
Yes
Data Hold
Yes
Min/Max
Yes
Dimensions
252mm (L) x 91mm (W) x 22mm (D)
